PRODUCT INTRODUCTION

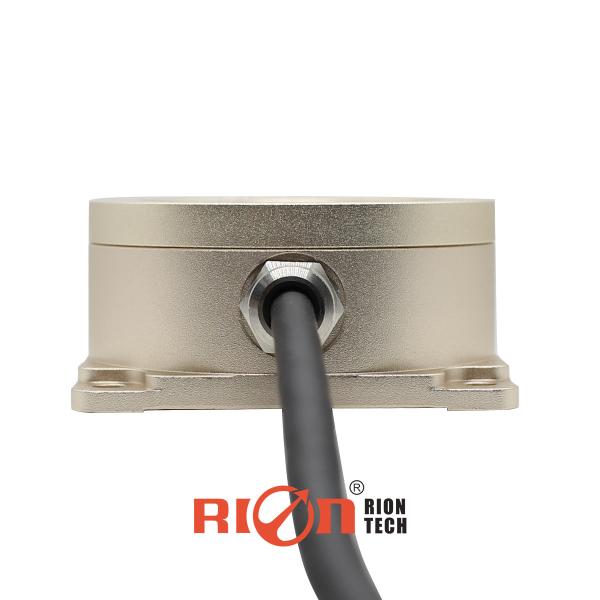

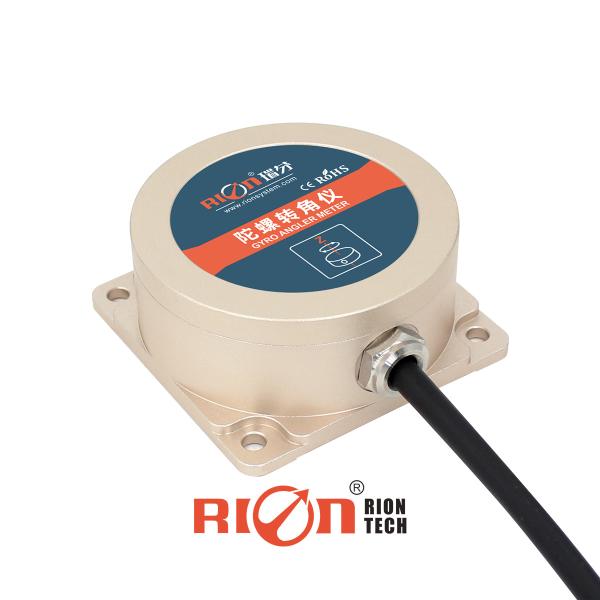

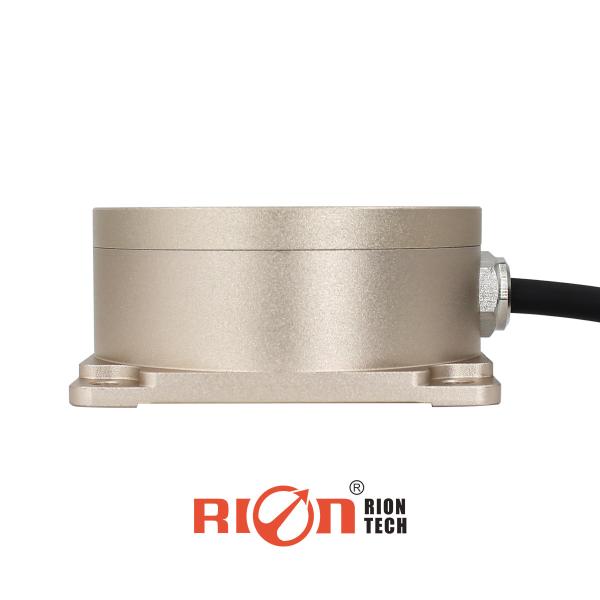

TL740D is a newly developed 3-axis MEMS angular rate sensor designed for horizontal relative heading measurement. It adopts a high-performance MEMS inertial platform and dynamic attitude algorithm to output real-time relative heading angles. The built-in inertial navigation and attitude fusion algorithms effectively minimize short-term gyro drift, ensuring stable and accurate heading data. This sensor is ideal for robot cars, AGVs, and UAVs, replacing traditional magnetic stripe navigation. No magnetic guide is required, making it an essential component for next-generation autonomous vehicles and robotic navigation systems.
● Azimuth angle output
●Strong vibration resistance
●Light weight
●Long life,strong stability
●Cost-effective
●All solid state
●Compact & light design
●RS232/RS485 output optional
●DC9~36V power supply
Relative heading angle output
High vibration resistance and long-term stability
Wide voltage range: DC 9–36V
Compact, lightweight, and all-solid-state design
Multiple interfaces: RS232 / RS485 / TTL optional
Cost-effective, maintenance-free
AGV and robot navigation
Vehicle positioning and control
Platform stabilization
3D virtual reality systems
Automotive safety systems
Industrial automation and control
● SPECIFICATIONS
| TL740D | Parameters |
| Measuring range | relative heading Angle (±180°) |
| Acquisition bandwidth | >100Hz |
| Resolution | 0.01° |
| positional accuracy | <2mm/m (converted from angle accuracy) |
| Nonlinear | 0.1% of FS |
| Gyroscope zero bias stability (10s smooth) | 10°/h |
| Max angle rate | 150°/s |
| Acceleration range | ±4g |
| Acceleration resolution | 0.001g |
| Acceleration accuracy | 5mg |
| Starting time | 5s(Static) |
| Input Voltage | DC9V~36V |
| Current | 60mA(12V) |
| Working Temp. | -40 ~ +85℃ |
| Storage Temp. | -40 ~ +85℃ |
| Vibration | 5g~10g |
| Impact | 200g pk,2ms,½sine |
| Working life | 10 years |
| Output rate | 5Hz / 15Hz / 25Hz / 50Hz / 100Hz Can set |
| Output signal | RS232 / RS485 / TTL (Optional) |
| MTBF | ≥98000 hours /times |
| Insulation resistance | ≥100 Megohm |
| Impact resistance | 100g@11ms / 3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms / 10~1000Hz |
| Protecting | IP67 |
| Weight | ≤170g (including 1 meter cable) |
